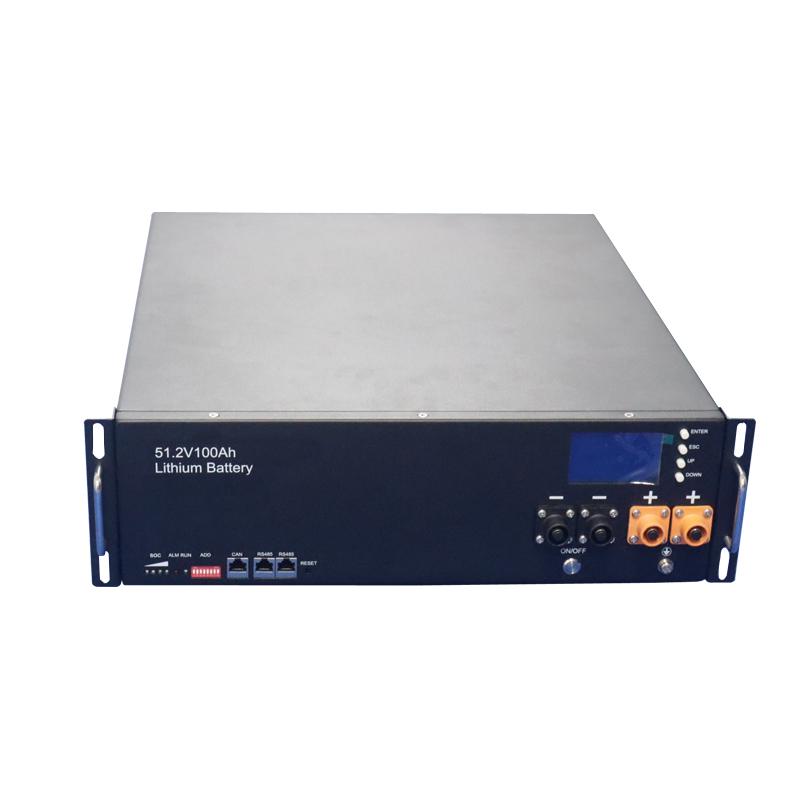

3U 5U 48V100Ah LiFePo4 Battery

Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.

Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.

Wider Temperature Range: -20℃~60℃.

Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.








Electrical Characteristics

Nominal Voltage

48V

Nominal Capacity

100Ah

Energy

4800Wh

Internal Resistance

≤ 50mΩ

Cycle Life

6000cycles  @0.5C 80% DOD

Months Self Discharge

3%

Efficiency of Charge

100%@0. 2C

Efficiency of Discharge

96~99%@0.5C





Standard Charge

Charge Voltage

54±0. 1V

Charge Mode

0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV)

Charge Current

50A

Max. Charge Current

80A

Charge Cut-off Voltage

58.5V±0. 2



Standard Discharge

Recommend Continuous Current

50A

Max continuous discharge current

100A

Discharge Cut-off Voltage

37.5V



Environmental

Charge Temperature

0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity

Discharge Temperature

-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity

Water Dust Resistance

IP20







Mechanical

Cell & Method

32700 6Ah 15S17P or 3.2V 100Ah Prismatic cell

Shell material

Iron(SGCC)

Dimensions (in./mm.)

548 x 440x 133mm

Weight (lbs./kg.)

Approx:47kgs

Gravimetric specific energy

102WH/KG

Protocol (optional)

RS485/RS232/CANBUS

SOC (optional)

   LED
